Historical luminaires THL-220/225/1230 "Baden-Baden"

Historical luminaires thl-203 picture


A version of our classic "Baden-Baden" provided with corner spandrels.
Through three different sizes, this luminaire open up numerous application possibilities in both the public as well as in the private sector.
The application can be carried out in conjunction with our historical iron candelabra, but also on wall brackets and in multiple arm combinations.

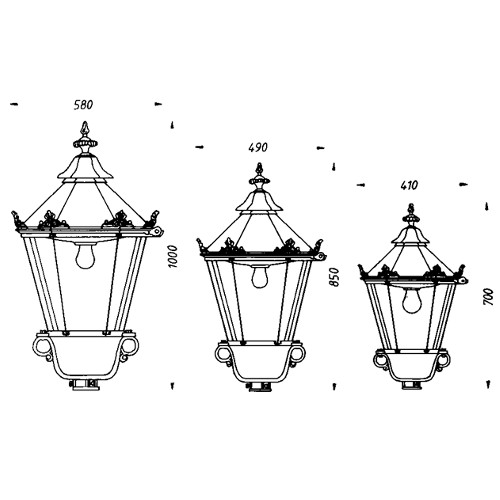

Historical luminaires thl-203 dreawing

Luminaire housing:
· Graycast, braceless, with 2 spacer tubes

Fitting roof:
· Copper sheet or aluminumsheet, painted

Reflector:
· Aluminium, white powder coated

Glass:
· Crystal glass, 4 mm thick (opal glass with extra charge)

Fastening elements:
· V2A

Varnishing:
· RAL color of your choice

Installation:
· LED
· 1xE26 ES
· 2xE26 ES
· TCD
· HSE
· HIE
· all electric parts with VDE mark

Protection category:
· IP 54

Protection class:
· SK I, SK II available on request

Bow luminaires:
· flange bow 64 mm , other dimension possible through adapters

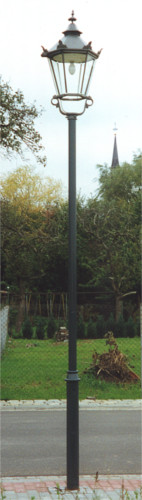

Historic luminaire THL-220 on a steel pole
