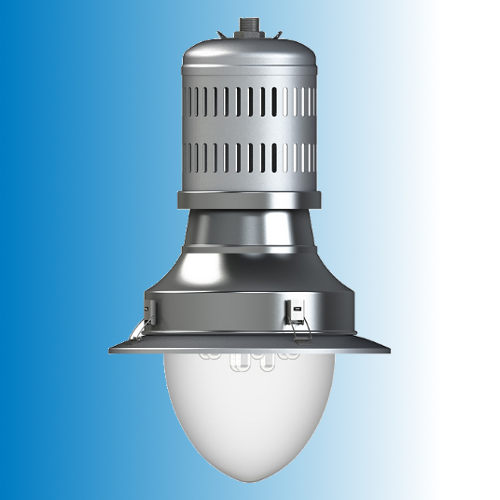

The robust LED pendant light made of aluminum and stainless steel corresponds in shape and design to the gas pendant light A-11. This luminaire is particularly characterized by the high efficiency of the cooling system and the durable and powerful LED engine.

---

General technical data:

· Switching off and / or dimming of the two LED groups is possible
· Switching off and / or dimming of the two LED groups is possible
· The power of the lamp can be adjusted in 10 steps
· The power reduction (HNS) can be set in 10 levels
· A fading (smooth change) to half-night switching is integrated
· All electronic components are protected from moisture
· The power supply has an all-around protection: OVP, SCP, OLP and SELV
· Service-friendly through individually replaceable LED lamps

Further technical data:

Operating voltage: 230 VAC / 50Hz
Power consumption: max .: 77.3 watts / manually adjustable
Luminous flux: 4729 Lumen / Lumen Maintenance L70 / B10
Light color: 2840 K
System luminous efficacy: 61.17 lm / W
ULOR: 2,58%
Power factor: 0.97
Degree of protection: Luminaire IP54 / LED room IP68 / LED lamp IP68 Power supply: Fa. Inventronics Type: EUC-026S035DS / SELV, electronically regulated (CE / TÜV / ENEC / RoHs)
Protection class: SK II
Ambient temperature: -40 ° C to 50 ° C
Luminaire glass: clear polycarbonate
Fastening: 1 inch external thread V2A
Dimensions: diameter 460 mm, height 760 mm
Area exposed to wind: 0.3563m²
Wind resistance coefficient: 1.2
Weight: approx. 8 kg
