Historic luminaire THL-203 "Baden-Baden"

Historic luminaire thl-203 picture


Successful example of the improvement of an old gas luminaire with the latest energy-saving technology.

There by, this luminaire opens up numerous application possibilities both, in the public as well as in the private sector.
The application can be carried out in conjunction with our historical iron candelabra, but also on steel poles.

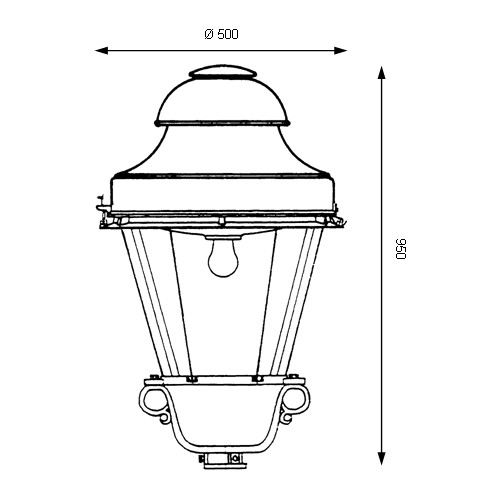

Historic luminaire thl-203 drawing

Luminaire housing:
· Graycast, braceless, with 2 spacer tubes

Fitting roof:
· Aluminum sheet, painted

Reflector:
· Aluminium, white powder coated

Glass:
· Crystal glass, 4 mm thick (opal glass with extra charge)

Fastening elements:
· V2A

Varnishing:
· RAL color of your choice

Installation:
· LED
· 1xE26 ES
· 2xE26 ES
· TCD
· HSE
· HIE
· all electric parts with VDE mark

Protection category:
· IP 23

Protection class:
· SK I, SK II available on request

Bow luminaires:
· Forged plaitbow, ø 64 mm, other measures possible through adapters

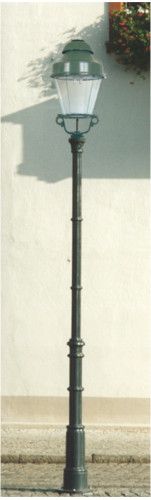

Historic luminaire THL-203 on candelabra THK-670/670-A
