Historic luminaire THL-200 "Baden-Baden"

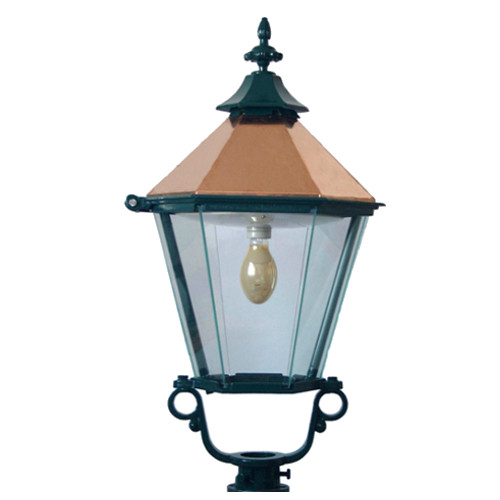

Historic luminaire thl-200 Picture


Simple variant of a historical Schinkel luminaire.

Through three different sizes, this luminaire opens up numerous application possibilities both in the public, as well as in the private sector.
The application can be carried out in conjunction with our historical iron candelabra, but also on wall brackets and in multiple arm combinations.

Historic luminaire thl-100 Drawing


Luminaire housing:
· Graycast, braceless, with 2 spacer tubes

Fitting roof:
· Copper sheet or aluminum sheet, painted

Reflector:
· Aluminium, white powder coated

Glass:
· Crystal glass, 4 mm thick (opal glass with extra charge)

Fastening elements:
· V2A

Varnishing:
· RAL color of your choice

Installation:
· LED
· 1xE26 ES
· 2xE26 ES
· TCD
· HSE
· HIE
· all electric parts with VDE mark

Protection category:
· IP 23

Protection class:
· SK I, SK II available on request

Bow luminaires:
· Forged plaitbow, 64 mm


Historic luminaire THL-200 with outriggers on candelabra THK-630/630-A
