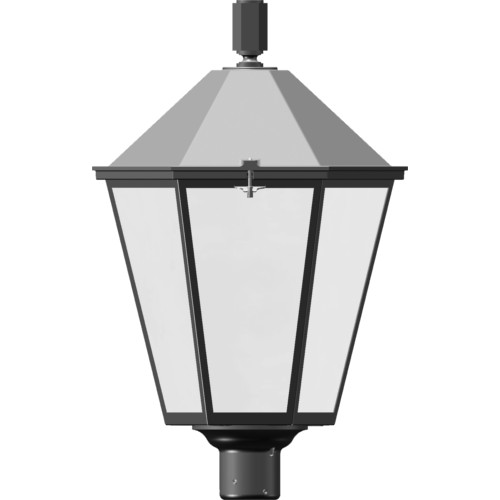

Historical luminaire L 500

gbs l 500

gbs l 500 HLS

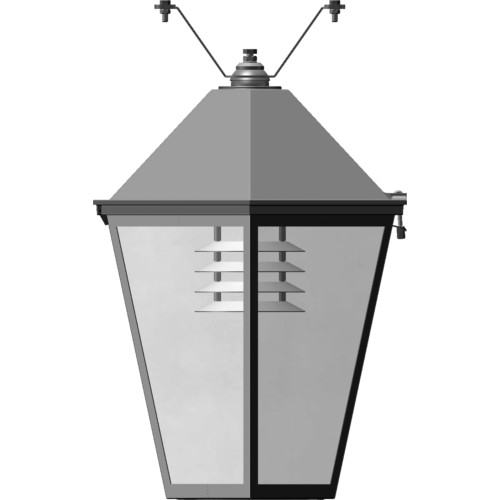

gbs l 400 Haging

gbs l 500 Light outlet on top

Luminaire dimensions:

    · Luminaire height 960 mm,
    · Roof hexagonal 560 mm
    · Recommended light point height up to 4,5 m
gbs l 500
Areas of application:
    · Fixed lighting of residential, roads and shopping streets
    · Park and green areas
    · Pedestrian zones
    · Parking spaces
Light point height: up to 4,5 m
    Maintenance: Toolless
      Electrical installation:
        · LED
        · HPS 35-100 Watt
        · HID 35-70 Watt
        · TCD
        · TCL
        · Tool-free exchangeable electroblock
        · VDE test mark on all electrical components
        · manufactured and tested according to VDE guidelines
        · CE mark
        · Electrical unit is compensated
        · Luminaire with connection cable to cable junction box
      IEC protection classes: I
        IP Code: IP 54
          Material:
            · Luminaire basket in stainless steel
            · Roof and lighting bow made of aluminum sand cast
          Coating: all parts are coated after careful preparation in all RAL colors or DB shades
            Glass: Polycarbonate basket - no single discs - optionally clear, opal or blind
              Fastening: All fastening elements are made of stainless steel
                Special equipment:
                  · IEC protection classes II
                  · Power selector
                  · Shielding with asymmetrical light distribution
                  · Symmetrical lamella reflector mirrored
                  · High performance mirror
                  · Upper light output
                Polardiagram:

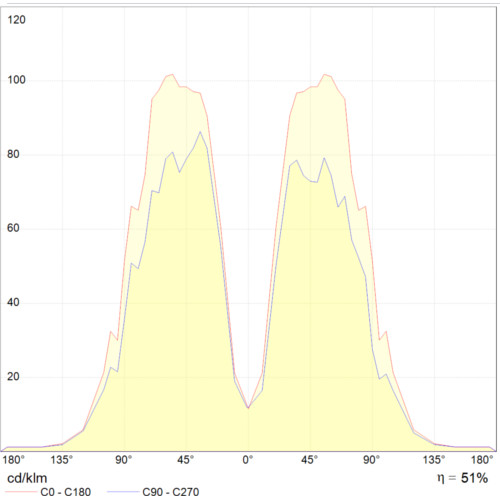

                Cartesian diagram:

                Light source: HSE 50 W
                Polardiagram:

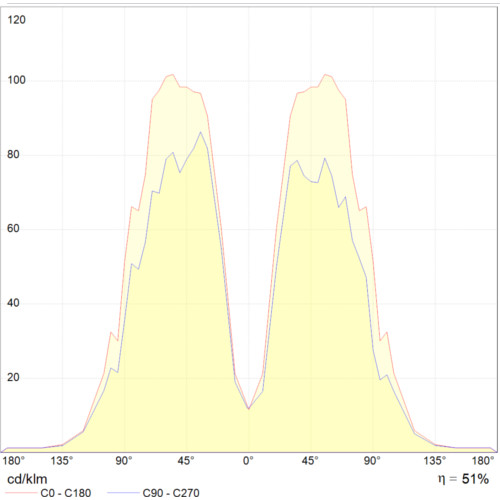

                Cartesian diagram:

                Light source: HME 50W
