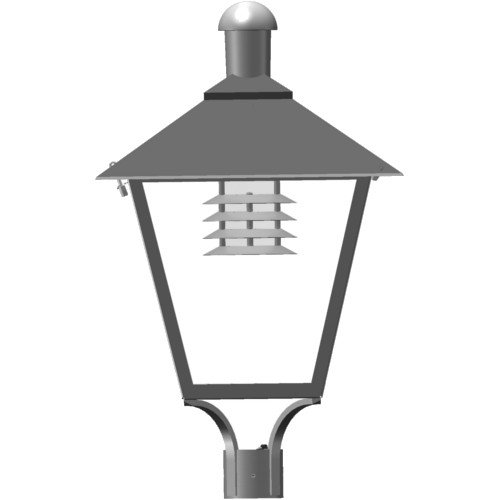

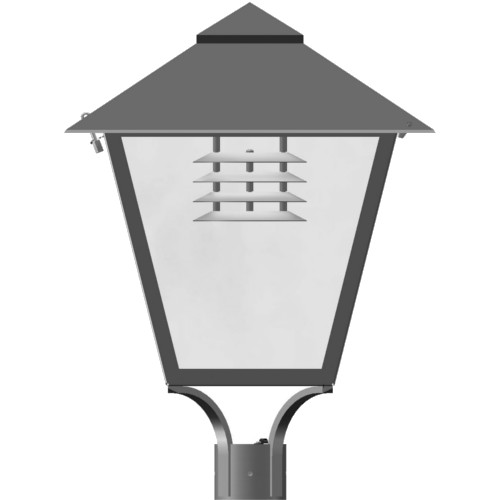

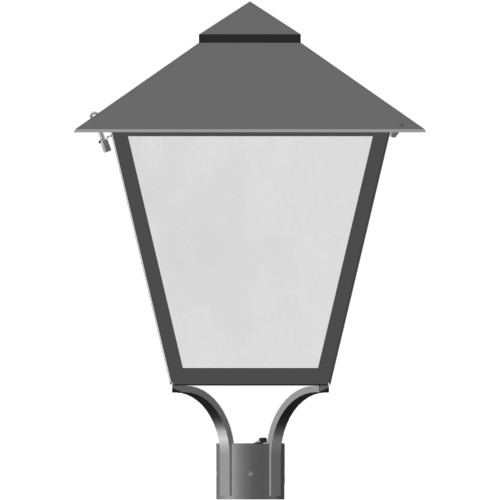

Historical luminaire series L 400 / L 410

gbs l 400

gbs l 400 Hochleistungsspiegel

Luminaire dimensions:
    · Luminaire height 730 mm
    · Luminaire roof 520 x 520 mm
    · Recommended light point height up to 4,5 m
Areas of application:
    · Fixed lighting of residential, roads and shopping streets
    · Park and green areas
    · Pedestrian zones
    · Parking spaces
Light point height: up to 4,5 m
    Maintenance: Toolless
      Electrical installation:
        · LED
        · HPS 35-100 Watt
        · HID 35-70 Watt
        · TCD
        · TCL
        · Tool-free exchangeable electroblock
        · VDE test mark on all electrical components
        · manufactured and tested according to VDE guidelines
        · CE mark
        · Electrical unit is compensated
        · Luminaire with connection cable to cable junction box
      IEC protection classes: I
        IP Code: IP 54
          Material:
            · Luminaire basket in stainless steel
            · Roof and lighting bow made of aluminum sand cast
          Coating: all parts are coated after careful preparation in all RAL colors or DB shades
            Glass: Polycarbonate basket - no single discs - optionally clear, opal or blind
              Fastening: All fastening elements are made of stainless steel
                Special equipment:
                  · IEC protection classes II
                  · Power selector
                  · Shielding with asymmetrical light distribution
                  · Symmetrical lamella reflector mirrored
                  · High performance mirror
                gbs l 400

                Luminaire dimensions:
                  · Luminaire height 730 mm
                  · Luminaire roof 520 x 520 mm
                  · Recommended light point height up to 4,5 m
                Areas of application:
                  · Fixed lighting of residential, roads and shopping streets
                  · Park and green areas
                  · Pedestrian zones
                  · Parking spaces
                Light point height: up to 4,5 m
                  Maintenance: Toolless
                    Electrical installation:
                      · LED
                      · HPS 35-100 Watt
                      · HID 35-70 Watt
                      · TCD
                      · TCL
                      · Tool-free exchangeable electroblock
                      · VDE test mark on all electrical components
                      · manufactured and tested according to VDE guidelines
                      · CE mark
                      · Electrical unit is compensated
                      · Luminaire with connection cable to cable junction box
                    IEC protection classes: I
                      IP Code: IP 54
                        Material:
                          · Luminaire basket in stainless steel
                          · Roof and lighting bow made of aluminum sand cast
                        Coating: all parts are coated after careful preparation in all RAL colors or DB shades
                          Glass: Polycarbonate basket - no single discs - optionally clear, opal or blind
                            Fastening: All fastening elements are made of stainless steel
                              Special equipment:
                                · IEC protection classes II
                                · Power selector
                                · Shielding with asymmetrical light distribution
                                · Symmetrical lamella reflector mirrored
                                · High performance mirror

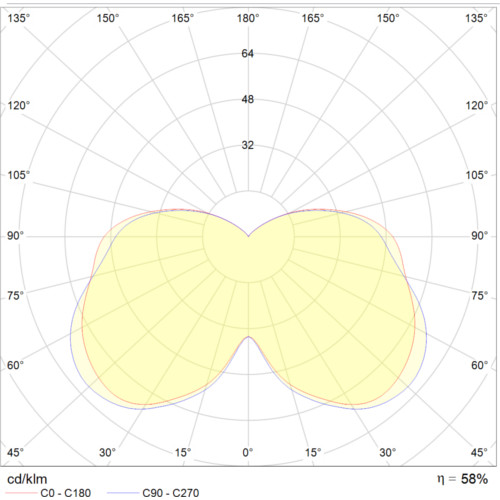

                              Polardiagram:

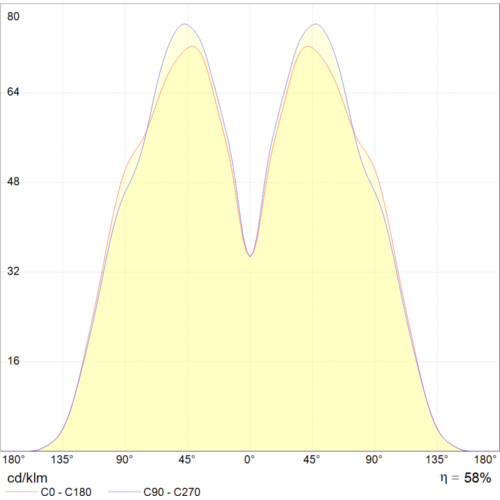

                              Cartesian diagram:

                              Light source: HSE 50 W

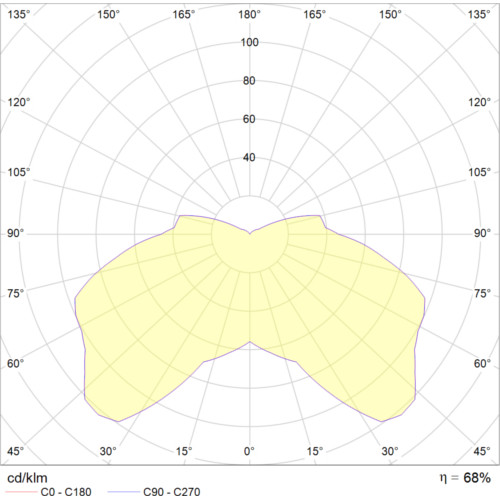

                              Polardiagram:

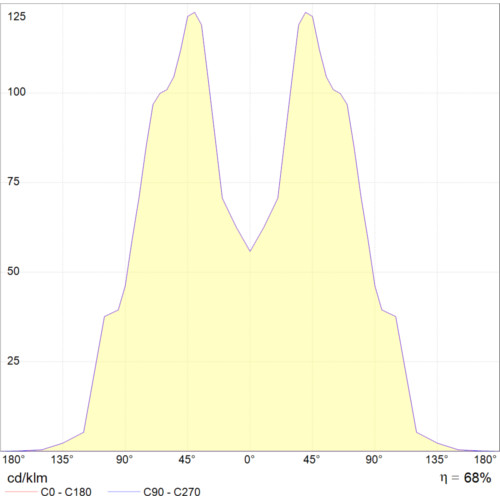

                              Cartesian diagram:

                              Light source: Osram NAV-E 70W
