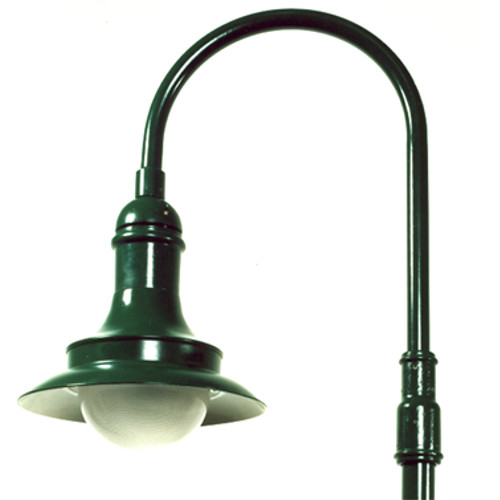

Decorative Luminaire TML-360

Decorative Luminaire TML-360

A luminaire with a decorative top used to illuminate the roads, the parkings and the green spaces.

The installation of this luminaire can be done to cantilever and a jib attachment, but also to bow poles. A particularly interesting design accents can be achieved with the variant TML-360-K in a closed circuit or in a semicircle.
The free color selection allows a wide margin of discretion for a variety of applications.

Decorative Luminaire TML-360 drawing

Application areas:

Fixed illumination from:
· Residential and shopping streets
· Parks and green areas
· Representative areas
· Pedestrian areas
· Promenades
· Parking and marketplaces

Lightspot height: 3.0 m to 4.5 m, for suspended installations of towers and bow masts of steel.

Luminaire housing:
· Aluminium sheet / Al-casting powder coated or painted
· RAL color of your choice
· Innerlying symmetrical reflector.

Cylinder: PMMA or PC (charge) opal or clear, Ø 250 mm, bayonet lock

Electrical installation:
· Electrical plug block
· LED
· HSE 70 - 150 W
· HIE
· On request also installation for two illuminants possible
· Protection class: I
· protection category: IP 44

All connecting elements made of stainless steel.

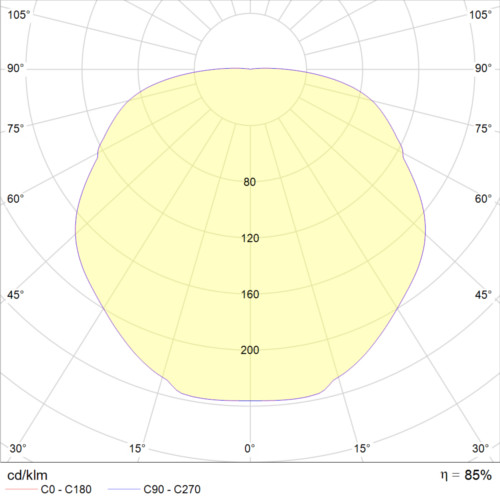

Polar graph:

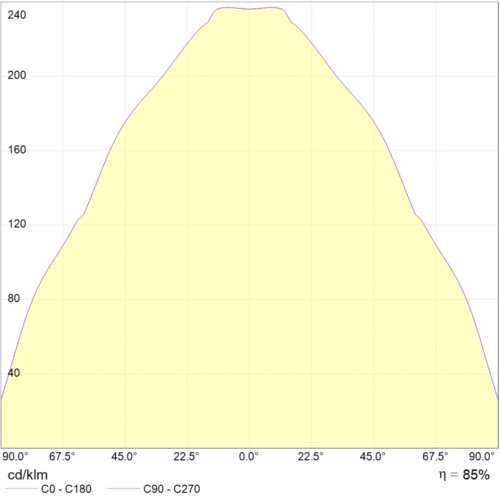

Cartesian graph



Decorative Luminaire TML-360 on jib and steelpole



Decorative Luminaire TML-360 on jib



Decorative Luminaire TML-360 on pole TZM 701.35



Decorative Luminaire TML-360 on jib TWA 410



Decorative Luminaire TML-360 as wallluminaire



Decorative Luminaire TML-360 on pole TZM 701.35/TBM 7414.40
