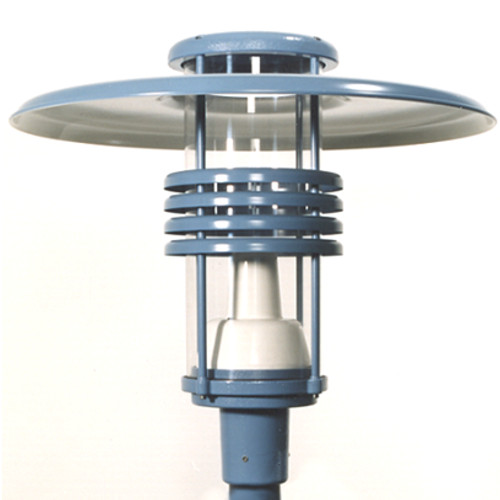

Decorative Luminaire TML-346

Decorative Luminaire TML-346

A luminaire with a decorative top used to light the roads, the parks and the green spaces.

With shield diameters of 680 mm and 800 mm, they can be used for mounting heights from 3.0 to 6.5 m. The free color selection allows a wide design leeway for a variety of applications.

This modern top luminaire is also available as a gas luminaire.

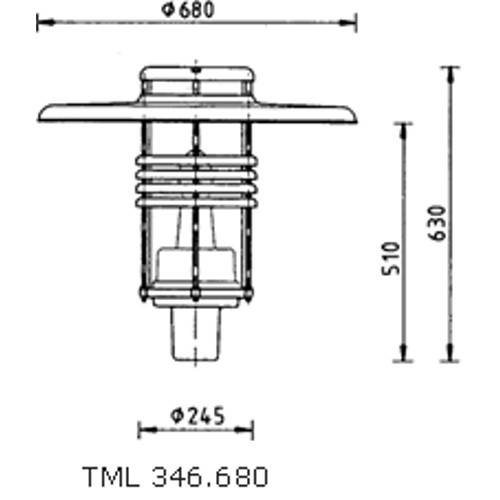

Decorative Luminaire TML-346 S drawing

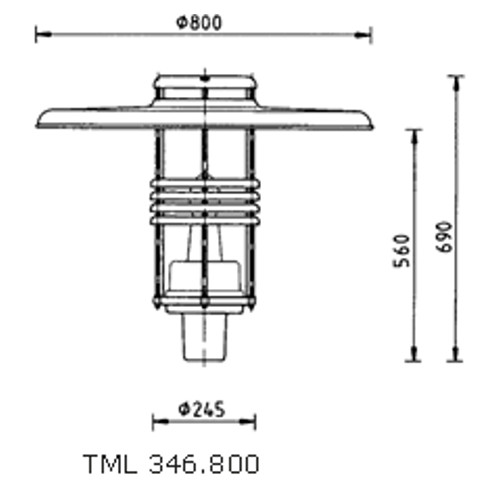

Decorative Luminaire TML-346 B drawing

Application areas:

Fixed illumination from:
· Residential and shopping streets
· Parks and green areas
· Representative areas
· Pedestrian areas
· Promenades
· Parking and marketplaces

Lightspot height:
· 3 to 6.5 m, for mounting a top luminaire on steel masts or jib (Spigot Ø 76 mm).

Luminaire housing:
· Aluminium sheet / Al-casting powder coated or painted
· RAL color of your choice
· Removable roof-part without tools
· On request glare reduction by internal fins, shielding or prismatic refractor (see illustration)

Cylinder: PMMA or PC (extra charge) opal or clear.

Electrical installation:
· Electrical plug block
· LED
· HSE 70 - 150 W
· HIE
Protection class: I
protection category: IP 44

All connecting elements made of stainless steel.

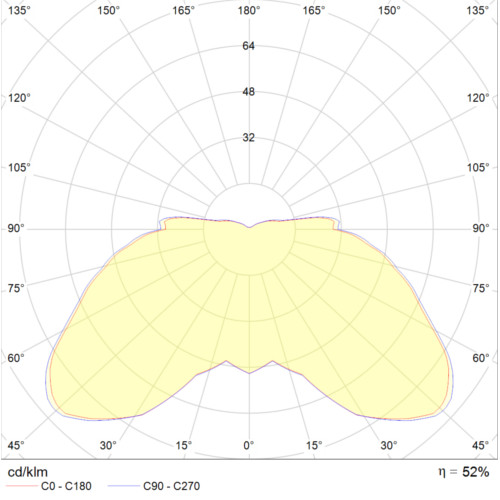

Polar graph:

Cartesian graph:

Light source: HSE 50 W


Decorative Luminaire TML-346 on a steel pole



Dimensions Decorative Luminaire TML-346 on a steel pole
