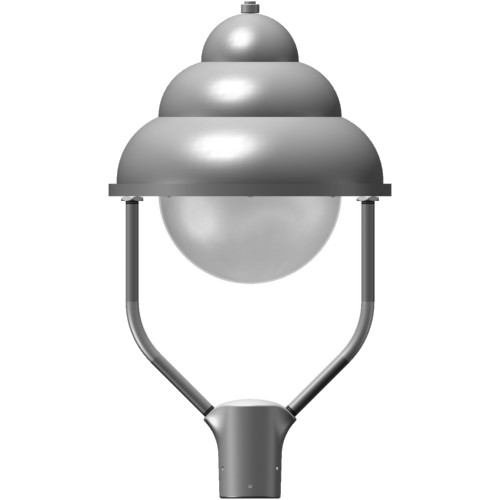

Decorative luminaire L 70

Dekorative Leuchte  L 60

Luminaire dimensions:

    · Luminaire height: 810 mm
    · Luminaire ø: 460 mm
    · Recommended light point height: up to 4,5 m

Dekorative Leuchte  L 60

Areas of application:
- Fixed lighting of residential, roads and shopping streets
- Park and green areas
- Parking and market places

Light point height:
- up to 4,5 m

Maintenance:
- Toolless

Electrical installation:
- LED
- HPS 35-100 Watt
- HID 35-70 Watt
- TCD
- TCL
- Tool-free replaceable electroblock,
- VDE test mark on all electrical components
- Electrical unit is compensated
- Luminaire with connection cable to cable junction box

IEC protection classes:
- I

IP Code:
- IP 54

Material:
- Luminaire base element made of aluminum sand cast,
- Luminaire shade made of strong-walled aluminum alloy with reinforced outer edge

Coating:
- all parts are coated after careful preparation in all RAL colors or DB shades

Glass:
- Acrylic clear

Fastening:
- All fastening elements are made of stainless steel

Special equipment:
- IEC protection classes II
- Power selector
- Shielding with asymmetrical light distribution
- Symmetrical lamella reflector mirrored
- Outlet in the base

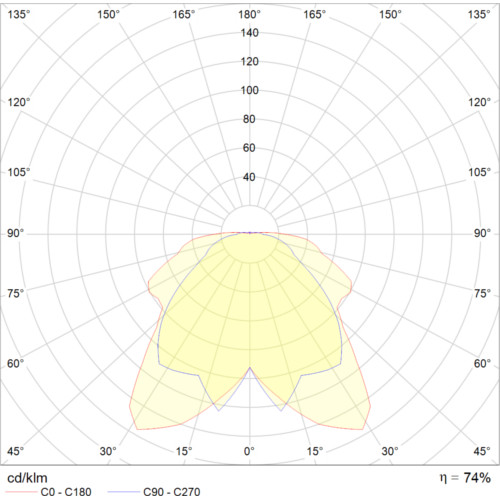

Polardiagram:

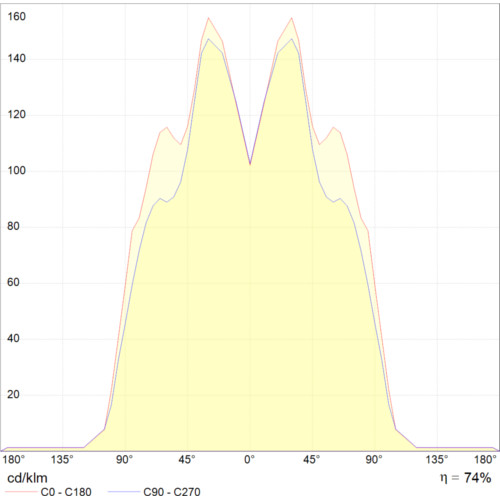

Cartesian diagram:

Light source: HSE 50W

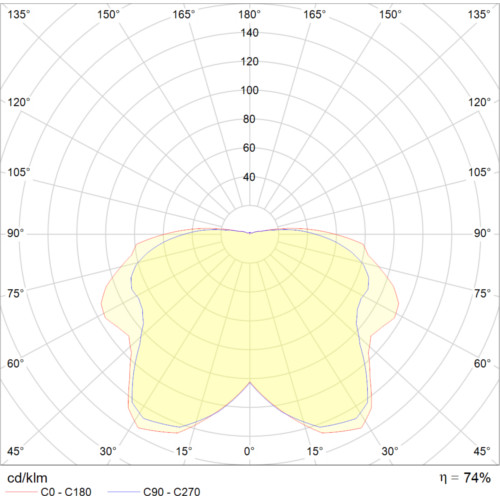

Polardiagram:

Cartesian diagram:

Light source: HST 50W
