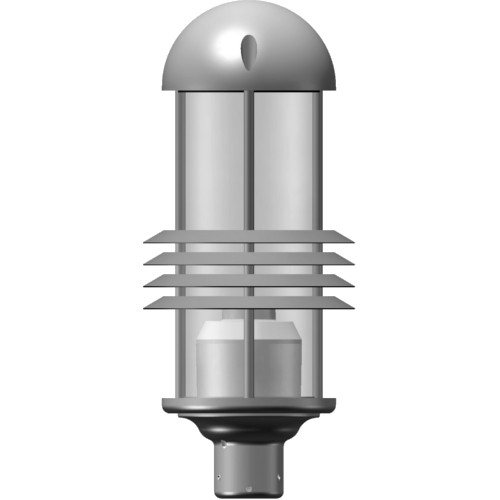

Luminaire dimensions:
· Luminaire height: 719 mm
· Luminaire ø: 305 mm
· Recommended light point height: up to 4,5 m

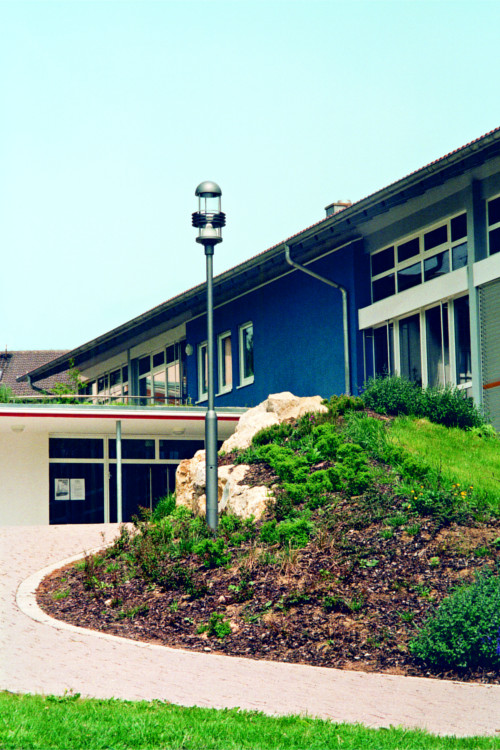

Areas of application:
- Fixed lighting of residential, roads and shopping streets
- Park and green areas
- Parking and market places
Light point height:
- up to 4,5 m
Maintenance:
- Toolless
Electrical installation:
- LED
- HPS 35-100 Watt
- HID 35-70 Watt
- TCD
- TCL
- Tool-free replaceable electroblock,
- VDE test mark on all electrical components
- Electrical unit is compensated
- Luminaire with connection cable to cable junction box
IEC protection classes:
- I
IP Code:
- IP 54
Material:
- Luminaire base element made of aluminum sand cast,
- Luminaire shade made of strong-walled aluminum alloy with reinforced outer edge
Coating:
- all parts are coated after careful preparation in all RAL colors or DB shades
Glass:
- Acrylic clear
Fastening:
- All fastening elements are made of stainless steel
Special equipment:
- IEC protection classes II
- Power selector
- Shielding with asymmetrical light distribution
- Symmetrical lamella reflector mirrored
- Outlet in the base
Polardiagram:
Cartesian diagram
Light source: Osram HCI-T Powerball 35W/WDL
