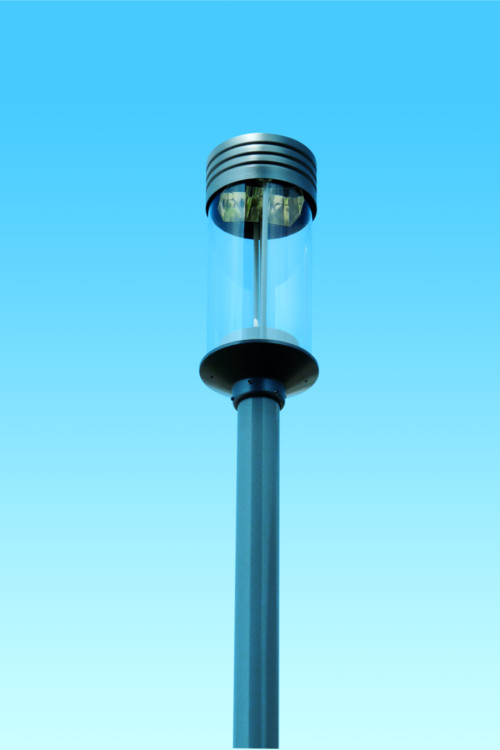

Decorative luminaire L 36 HLS or pagoda raster

Dekorative Leuchte  L 36

Dekorative Leuchte  L 36_1

Luminaire dimensions:

    · Luminaire height: 535 mm
    · Luminaire : 210 mm
    · Recommended light point height: up to 5 m

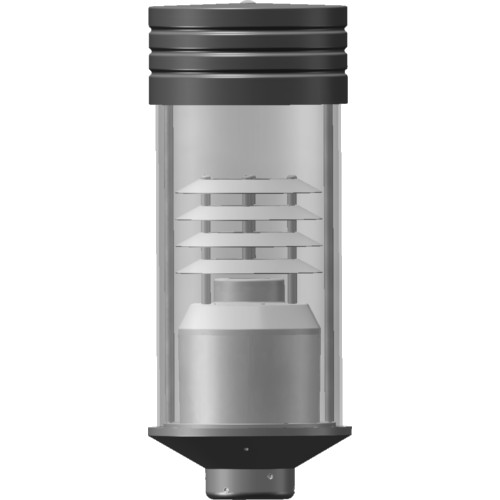

Dekorative Leuchte  L 36 HLS

L 36 pagoda raster

Areas of application:
- Fixed lighting of residential, roads and shopping streets
- Park and green areas
- Parking and market places.

Light point height:
- up to 5 m

Maintenance:
- Toolless

Electrical installation:
- HCI-T 35-70 Watt with G12 socket
- High performance mirror
- Tool-free replaceable electroblock,
- VDE test mark on all electrical components
- Electrical unit is compensated
- Luminaire with connection cable to cable junction box

IEC protection classes:
- I

IP Code:
- IP 54

Material:
- Luminaire base element made of aluminum sand cast,
- Luminaire shade made of strong-walled aluminum alloy with reinforced outer edge

Coating:
- all parts are coated after careful preparation in all RAL colors or DB shades

Glass:
- Acrylic clear

Fastening:
- All fastening elements are made of stainless steel

Special equipment:
- IEC protection classes II
- Acrylic satin finish
- Glass made of polycarbonate
- Outlet in the base

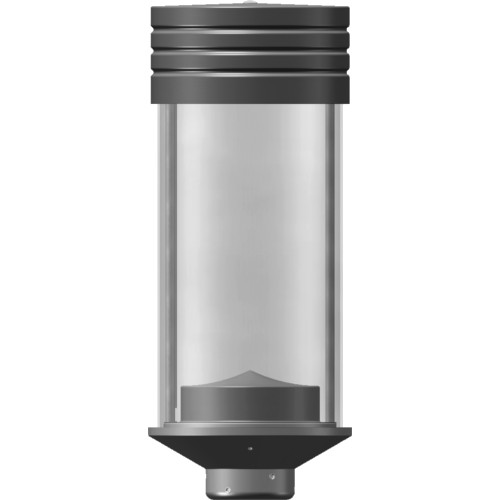

Dekorative Leuchte  L 36 Pagodenraster

L 36 high performance mirror

Areas of application:
- Fixed lighting of residential, roads and shopping streets
- Park and green areas
- Parking and market places.

Light point height:
- up to 5 m

Maintenance:
- Toolless

Electrical installation:
- HCI-T 35-70 Watt with G12 socket
- High performance mirror
- Tool-free replaceable electroblock,
- VDE test mark on all electrical components
- Electrical unit is compensated
- Luminaire with connection cable to cable junction box

IEC protection classes:
- I

IP Code:
- IP 54

Material:
- Luminaire base element made of aluminum sand cast,
- Luminaire shade made of strong-walled aluminum alloy with reinforced outer edge

Coating:
- all parts are coated after careful preparation in all RAL colors or DB shades

Glass:
- Acrylic clear

Fastening:
- All fastening elements are made of stainless steel

Special equipment:
- IEC protection classes II
- Acrylic satin finish
- Glass made of polycarbonate
- Outlet in the base

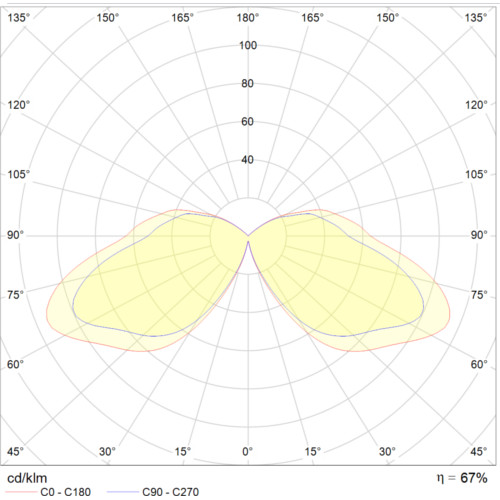

Polardiagram:

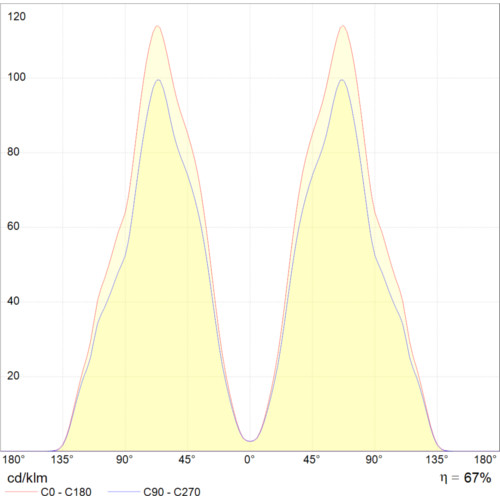

Cartesian diagram:

Light source: Osram NAV-E 50W

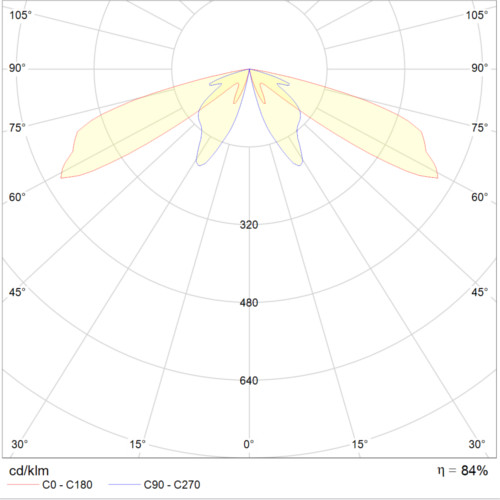

Polardiagram:

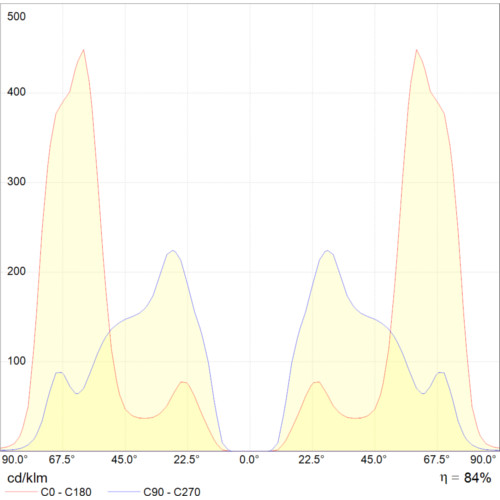

Cartesian diagram:

Light source: Osram HCI-T Powerball 35W/WDL
