Technical luminaire TTL Sardis M3S

Road luminaire TTL Sardes M3 90 W

General technical specifications:



· ME class roads and parking lots · Color temperature 4,000 K (neutral white)
· Luminous flux 10400 lm ± 10% · Power consumption 90 Watt
· System efficiency 115 (lm / W) · System life >50.000 h
· Temperature range -40 ° C / + 50 ° C · color rendering (CRI) Ra> 70
· Optional dimmable / controllable · Protection class IP 66

Other technical information:



Input Voltage Range: 220 – 240 V, 50 – 60 Hz
Beam Angle: Y:65°/D:145°
Power factor [PF]: 0,9
Casing: Aluminum diecast, IP 66
Montage: Variable Mast connection 90 ° / 180 ° (± 15 °)
spigot size: 42 mm/60 mm/76 mm
Overvoltage protection: 4KV, 10KV optionally
Operating temperature: -40°C /+50°C
Dimensions: 808x333,5x95 mm
Weight: 10,3 kg

Special features:



· Warranty 5 years, optionally 10 years
· Easy installation through built-in spirit level
· Variable inclination angle of 15 °
· Variable pole end
· Adapters for various mast diameters
· Very low maintenance and spare parts costs
· Easy replacement of the driver
· No start delay, without preheating time
· Low insect infestation by homogeneous light distribution

Luminaire dimensions:

Dimensioning street luminary TTL Sardes M3S 128 W

Photometric data:

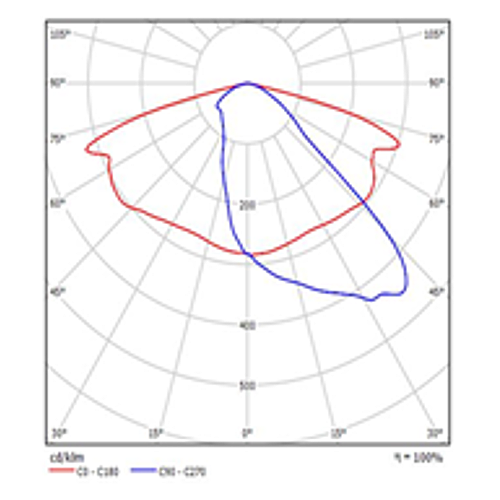

Polardiagramm Licht und Intensitätsdiagramm

Polarchart

Light and intensitychart


General technical specifications:



· ME class roads and parking lots · Color temperature 4,000 K (neutral white)
· Luminous flux 11400 lm ± 10% · Power consumption Watt
· System efficiency 115 (lm / W) · System life >50.000 h
· Temperature range -40 ° C / + 50 ° C · color rendering (CRI) Ra> 70
· Optional dimmable / controllable · Protection class IP 66

Other technical information:



Input Voltage Range: 220 – 240 V, 50 – 60 Hz
Beam Angle: -
Power factor [PF]: > 0,9
Casing: Aluminum diecast, IP 66
Montage: Variable Mast connection 90 ° / 180 ° (± 15 °)
spigot size: 42 mm/60 mm/76 mm
Overvoltage protection: 4KV, 10KV optionally
Operating temperature: -40°C /+50°C
Dimensions: 866x370x94 mm
Weight: 11 kg

Special features:



· Warranty 5 years, optionally 10 years · Easy installation through built-in spirit level
· Variable inclination angle of 15 ° · Variable pole end
· Adapters for various mast diameters · Very low maintenance and spare parts costs
· Easy replacement of the driver · No start delay, without preheating time
· Low insect infestation by homogeneous light distribution

Leuchtenmaße:

bemaßung 1 bemaßung2

Lichttechnische Daten:

Polardiagramm Licht und Intensitätsdiagramm
