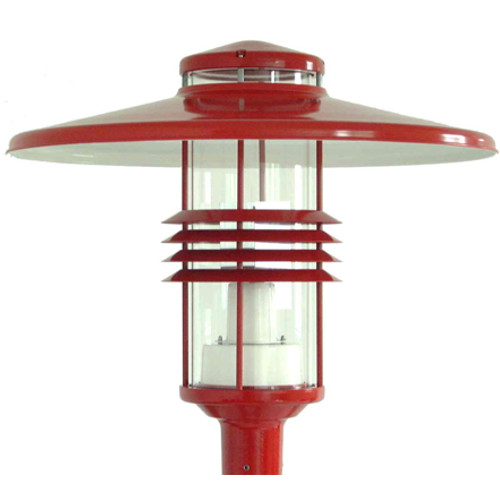

Decorative Luminaire TML-347 L

Decorative Luminaire TML-347 L

A luminaire with a modern top used to light the streets, the parks and the green areas.

There is an opportunity to choose two different roof-sizes. This luminaire opens up the range of mounting heights from 3.0 to 6.5 m.
It is advisable to use this lamp in conjunction with one of the optional lighting systems (Prismatic or mirrorlamellae).

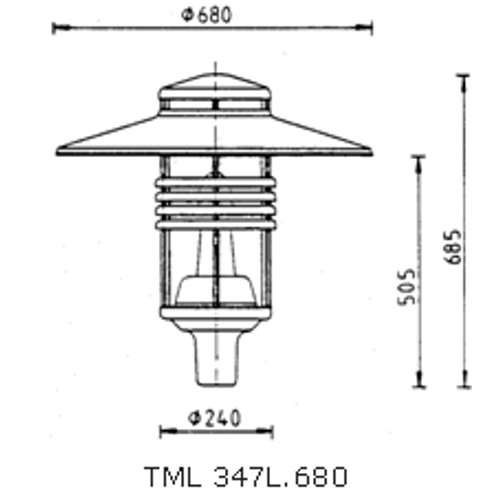

Decorative Luminaire TML-347 L drawing Decorative Luminaire TML-347 L drawing


Application areas: Fixed illumination from:
· Residential and shopping streets
· Parks and green areas
· Representative areas
· Pedestrian areas
· Promenades
· Parking and marketplaces
Lightspot height: 3 to 6.5 m, for mounting a top luminaire on steel masts or jib (Spigot 76 mm).
Luminaire housing: · Aluminium sheet / Al-casting powder coated or painted
· RAL color of your choice
· removable roof-part without tools
· On request glare reduction by internal fins, shielding or prismatic refractor (see illustration)
Cylinder: PMMA or PC (extra charge) opal or clear.
Electrical installation: · Electrical plug block
· LED
· HSE 70 - 150 W
· HIE
Protection class: I
protection category: IP 44

All connecting elements made of stainless steel.

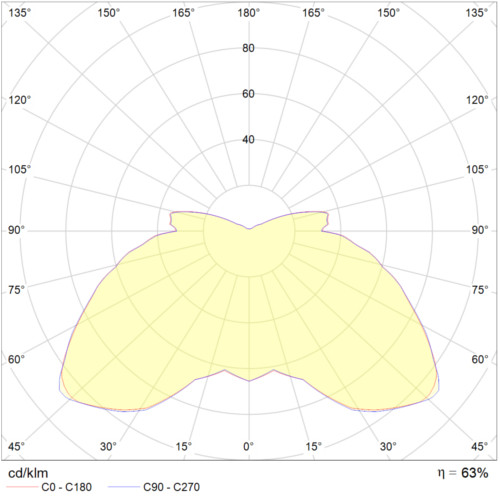

Polar graph:

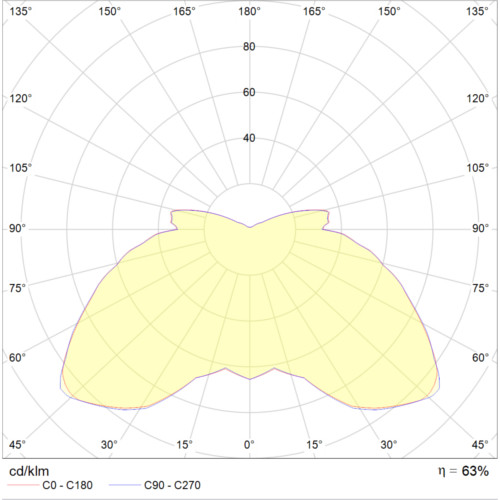

Cartesian graph:
Light source: Osram Vialox NAV E 70/E

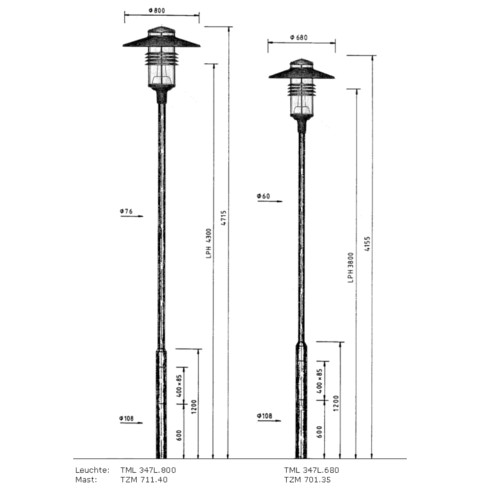

Decorative Luminaire TML-347 L on a steel pole

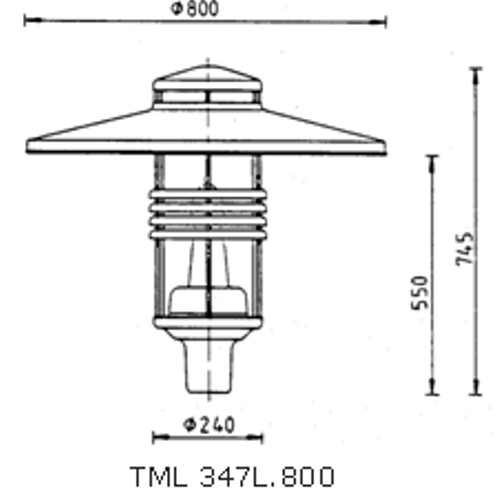

Dimensions Decorative Luminaire TML-347 L
