Decorative luminaire TML-343

Decorative luminaire TML-343

A luminaire with a decorative top used for the illumination of roads, parks and green spaces.

This classic luminaire has a modern twist. It is suitable for mounting heights from 3.5 to 6.5 m.
The individual creative freedom increased by using the way different cone glasses and lighting control systems.

Decorative luminaire TML-343 S drawing

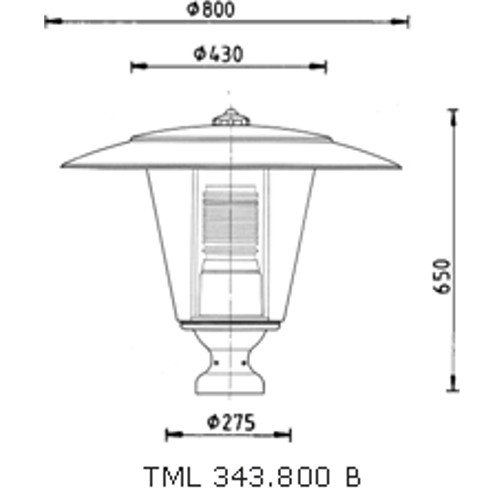

Decorative luminaire TML-343 B drawing

Application areas:

Fixed illumination from:
· Residential and shopping streets
· Parks and green areas
· Representative areas
· Pedestrian areas
· Promenades
· Parking and marketplaces

Lightspot height:
· 3,5 to 6,5 m, or the installation of a top light on steel masts or jib (spigot Ø 76 mm) (TML 343 S) or with adapters on concrete pole (TML 343 B)

Luminaire housing:
· Aluminium sheet / Al-casting powder coated or painted
· RAL color of your choice
· Removable roof-part without tools
· On request glare reduction by internal fins, shielding or prismatic refractor (see illustration)

Cylinder: PMMA or PC (extra charge) opal or clear.

Electrical installation:
· LED
· HSE 70 - 150 W, On request also installation for two illuminant possible
· HIE
Protection class: I
protection category: IP 44

All connecting elements made of stainless steel.
Polar graph:

Cartesian graph:

Lichtquelle: HSE 50 W


TML-343 on a steel pole



Dimensions of Luminaire TML-343 on a steel pole
