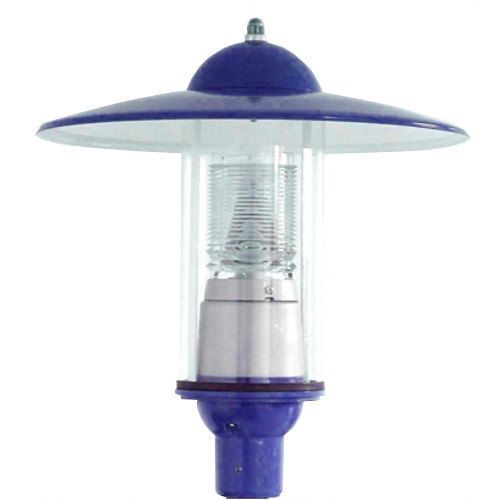

Decorative luminaire TML-340

Decorative ligh TML-340

A luminaire with a decorative top used for the illumination of roads, parks and green spaces.

This particularly simple form allows a variety of applications.
This luminaire allows light control and glaze reduction. It is used by prismrefractor recommended.
This lamp is suitable for mounting heights of 3.0 to 4.5 m.
The color selection allows a wide margin of discretion for a variety of applications.

historische leuchte thl-100 zeichnung


Application areas: Fixed illumination from:
· Residential and shopping streets
· Parks and green areas
· Representative areas
· Pedestrian areas
· Promenades
· Parking and marketplaces
Lightspot height: 3,0 to 4,5 m
Luminaire housing: · Aluminium sheet / Al-casting powder coated or painted
· RAL color of your choice
· removable roof-part without tools
· On request glare reduction by internal fins, shielding or prismatic refractor (see illustration)
Cylinder: PMMA or PC (extra charge) opal or clear.
Electrical installation: · LED
· HSE 50 - 70 W
· HIE
Protection class: I
protection category: IP 44

All connecting elements made of stainless steel.

Polar graph:
Cartesian graph:
Light source: HSE 50 W

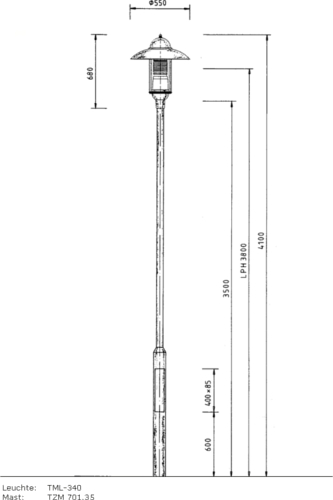

TML-340 on steelpole



Dimensions of Luminaire TML-340 on steelpole
