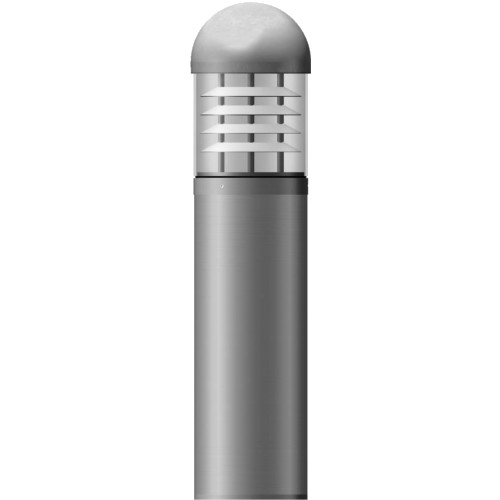

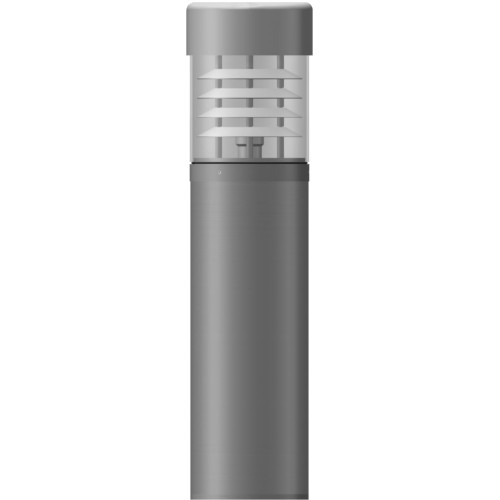

Decorative bollard luminaires LP 220

Decorative bollard luminaires LP 220 Decorative bollard luminaires LP 220

Luminaire dimensions:

    · Bollard high: 780 mm
    · Bollard °: 180 mm

Decorative bollard luminaires LP 220 Decorative bollard luminaires LP 220

 Areas of application:
    · Park and green areas
    · Pedestrian zones
    · Parking spaces
 Electrical installation:
    · LED
    · HCI 35Watt
    · NAV 35-50 Watt
    · TCD
    · VDE test mark on all electrical components
    · CE sign
    · Electrical unit is compensated,
 IEC protection classes:
    · I
 IP Code:
    · IP 54
 Material:
    · Carrier element made of thick-walled aluminum tube
 Coating:
    · all parts are coated after careful preparation in all RAL colors or   DB shades
 Glass:
    · Acrylic opal, clear or diffuser
 Fastening:
    · All fastening elements are made of stainless steel
 Special equipment:
    · IEC protection classes II
    · Power switch
    · Compact fluorescent lamps
    · Symmetrical lamella reflector mirrored
    · Shielding with asymmetrical light distribution
    · Glass of polycarbonate
    · Other bollards height
    · Grounding piece

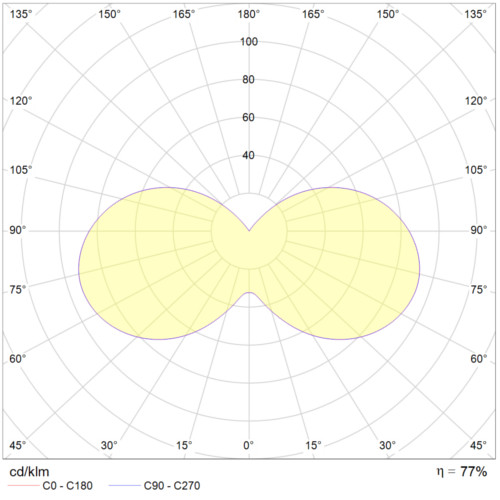

Polardiagram:

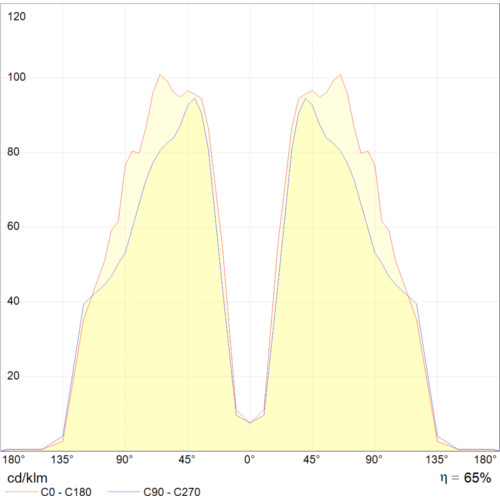

Cartesian diagram:
Light source: HSE 50 W

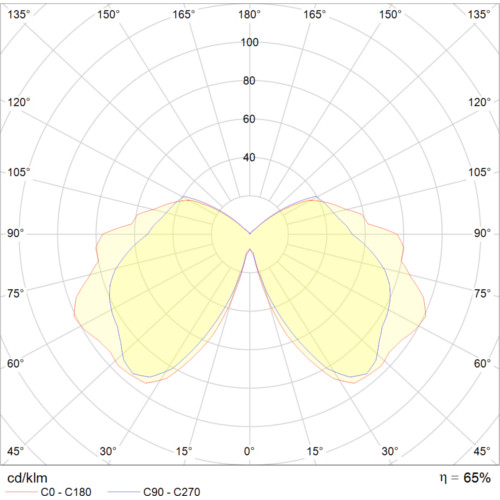

Polardiagram:

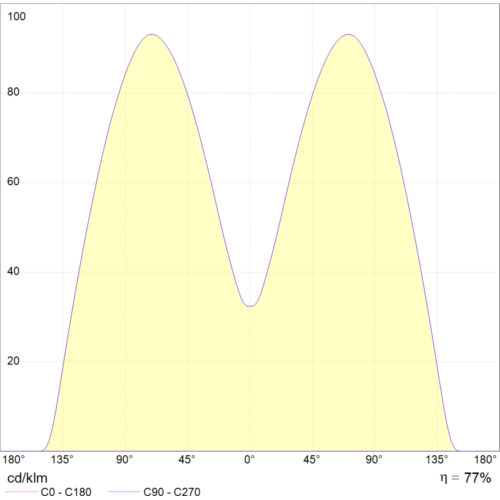

Cartesian diagram:
Light source: Osram HCI 35 W
