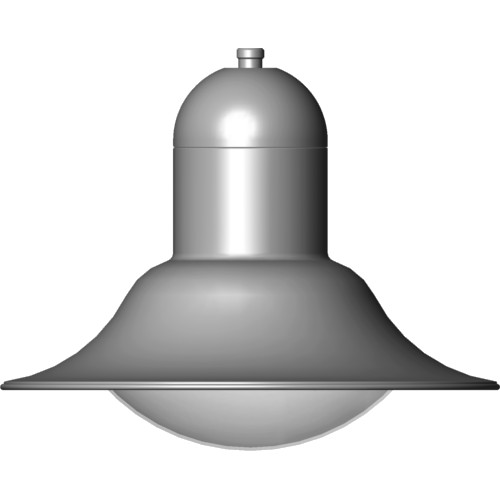

Luminaire dimensions:
· Luminaire height: 580 mm
· Luminaire shade ø: 760 mm
· Recommended light point height: up to 7 m
Areas of application:

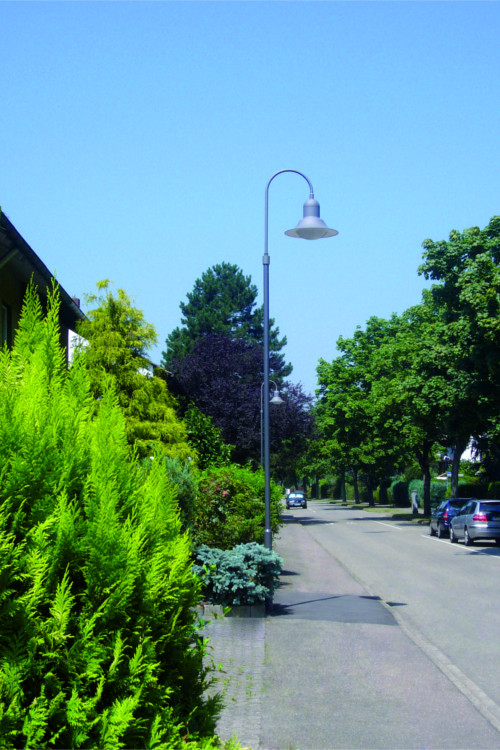

- Fixed lighting of residential, roads and shopping streets
- Park and green areas
- Pedestrian zones
- Parking spaces
Light point height:
- up to 7 m
Maintenance:
- Toolless
Electrical installation:
- Horizontal electric light selectively
- LED
- HPS 35-100 Watt
- HID 35-70 Watt
- TCD 26-42 Watt
- VDE test mark on all electrical components
- CE-sign
- Electrical unit is compensated
- Luminaire with connection cable to cable junction box
IEC protection classes:
- I
IP Code:
- IP 54
Material:
- Luminaire shade made of strong-walled aluminum alloy with
reinforced outer edge
Coating:
- all parts are coated after careful preparation in all RAL colors or DB shades
Glass:
- Polycarbonate optionally clear or opal
Fastening:
- All fastening elements are made of stainless steel
Special equipment:
- IEC protection classes II
- Power selector
- High performance mirror
Polardiagram:

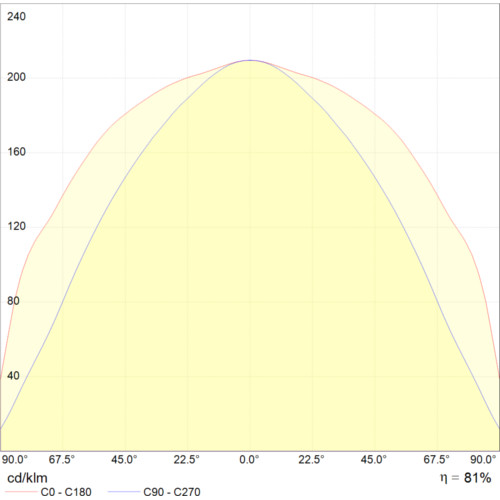

Cartesian diagram:
Light source: Osram NAV-E 70 W / L 55 Glas Standard

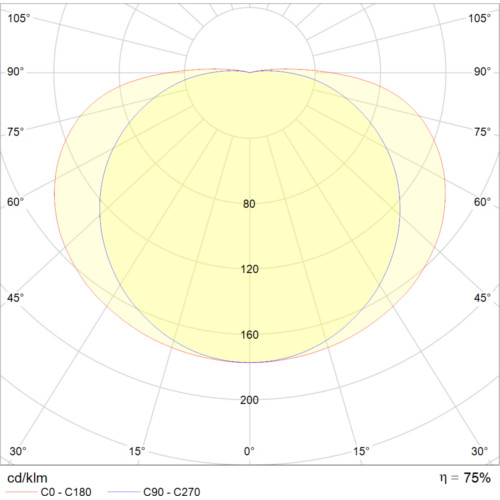

Polardiagram:

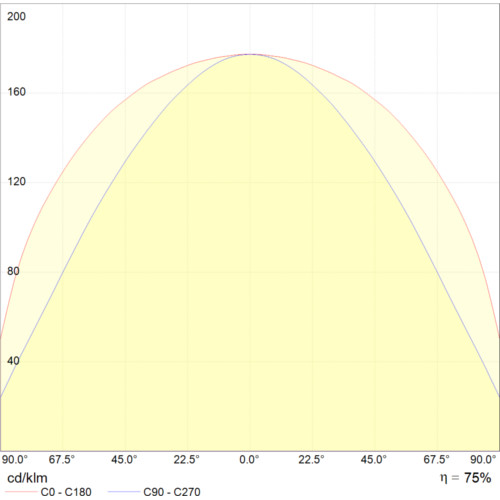

Cartesian diagram:
Light source: Osram NAV-E 70 W / L 55 Glas geperlt
