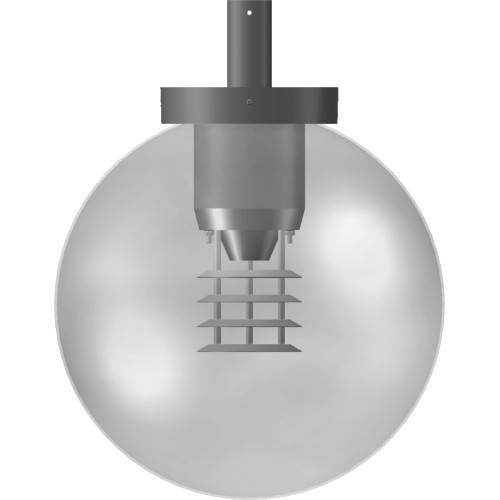

Decorative luminaire L 42

Decorative luminaire L 42

Luminaire dimensions:

    · Luminaire height: 470 mm
    · Luminaire ball : 450 mm
    · Recommended light point height: up to 5 m

Decorative luminaire L 42


 Areas of application:
    · Fixed lighting of residential, roads and shopping streets
    · Park and green areas
    · Pedestrian zones
    · Parking spaces
 Light point height:
    · up to 5 m
 Maintenance:
    · Toolless
 Electrical installation:
    · LED
    · HPS 35-100 Watt
    · HID 35-70 Watt
    · TCD
    · VDE test mark on all electrical components
    · Electrical unit is compensated
    · Luminaire with connection cable to cable junction box
 IEC protection classes:
    · I
 IP Code:
    · IP 54
 Material:
    · Luminaire base element made of aluminum sand cast,
 Coating:
    · all parts are coated after careful preparation in all RAL colors or   DB shades
 Glass:
    · Polycarbonate optionally clear, gold-lined or opal
 Fastening:
    · All fastening elements are made of stainless steel
 Special equipment:
    · IEC protection classes II
    · Power selector
    · Shielding with asymmetrical light distribution
    · Symmetrical lamellar reflector mirrored
    · Ball diameter 400mm or 500mm

Polardiagram:
Cartesian diagram:
Light source: HME 50W
Polardiagram:
Cartesian diagram:
Light source: HSE 50W
