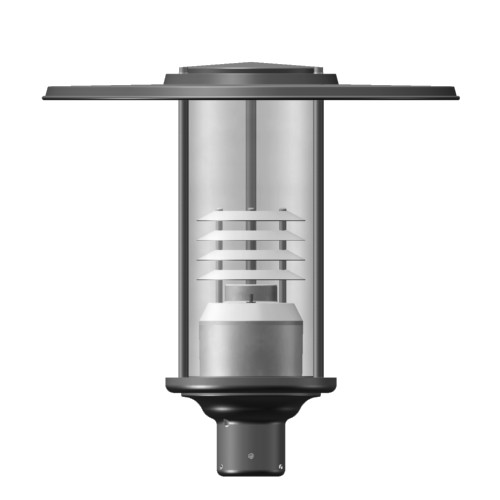

Decorative luminaire L 27, L 27 HLS, L 27 S

Dekorative Leuchte  L 27

Luminaire dimensions:

    · Luminaire height: 600 mm
    · Luminaire shade: 600 mm
    · Recommended light point height: up to 5 m


     L 27
     Areas of application:
      · Fixed lighting of residential, roads and shopping streets
      · Park and green areas
      · Parking and market places.
     Light point height:
      · up to 5 m
     Maintenance:
      · Toolless
     Electrical installation:
      · LED
      · HPS 35-100 Watt
      · HID 35-70 Watt
      · TCD
      · TCL
      · Tool-free replaceable electroblock,
      · VDE test mark on all electrical components
      · Electrical unit is compensated
      · Luminaire with connection cable to cable junction box
     IEC protection classes:
      · I
     IP Code:
      · IP 54
     Material:
      · Luminaire base element made of aluminum sand cast,
      · Luminaire shade made of strong-walled aluminum alloy with
        reinforced outer edge
     Coating:
      · all parts are coated after careful preparation in all RAL colors or   DB shades
     Glass:
      · Acrylic clear
     Fastening:
      · All fastening elements are made of stainless steel
     Special equipment:
      · IEC protection classes II
      · Power selector
      · Shielding with asymmetrical light distribution
      · Tool-free maintenance by pressure closing the roof
      · Glass made of polycarbonate
      · Outlet in the base

Dekorative Leuchte  L 27 hls

Luminaire dimensions:

    · Luminaire height: 600 mm
    · Luminaire shade: 600 mm
    · Recommended light point height: up to 5 m


     L 27 HLS
     Areas of application:
      · Fixed lighting of residential, roads and shopping streets
      · Park and green areas
      · Parking and market places.
     Light point height:
      · up to 5 m
     Maintenance:
      · Toolless
     Electrical installation:
      · HCI-T 35-70 Watt with G12 socket
      · High performance mirror
      · VDE test mark on all electrical components
      · Electrical unit is compensated
      · Luminaire with connection cable to cable junction box
     IEC protection classes:
      · I
     IP Code:
      · IP 54
     Material:
      · Luminaire base element made of aluminum sand cast,
      · Luminaire shade made of strong-walled aluminum alloy with
        reinforced outer edge
     Coating:
      · all parts are coated after careful preparation in all RAL colors or   DB shades
     Glass:
      · Acrylic clear
     Fastening:
      · All fastening elements are made of stainless steel
     Special equipment:
      · IEC protection classes II
      · Power selector
      · Shielding with asymmetrical light distribution
      · Tool-free maintenance by pressure closing the roof
      · Glass made of polycarbonate
      · Outlet in the base

Dekorative Leuchte  L 27 s

Luminaire dimensions:

    · Luminaire height: 570 mm
    · Luminaire shade: 600 mm
    · Recommended light point height: up to 5 m


     L 26 S
     Areas of application:
      · Fixed lighting of residential, roads and shopping streets
      · Park and green areas
      · Parking and market places.
     Light point height:
      · up to 5 m
     Maintenance:
      · Toolless
     Electrical installation:
      · LED
      · HPS 35-100 Watt
      · HID 35-70 Watt
      · TCD
      · TCL
      · Tool-free replaceable electroblock,
      · VDE test mark on all electrical components
      · Electrical unit is compensated
      · Luminaire with connection cable to cable junction box
     IEC protection classes:
      · I
     IP Code:
      · IP 54
     Material:
      · Luminaire base element made of aluminum sand cast,
      · Luminaire shade made of strong-walled aluminum alloy with
        reinforced outer edge
     Coating:
      · all parts are coated after careful preparation in all RAL colors or   DB shades
     Glass:
      · Acrylic clear
     Fastening:
      · All fastening elements are made of stainless steel
     Special equipment:
      · IEC protection classes II
      · Power selector
      · Shielding with asymmetrical light distribution
      · Tool-free maintenance by pressure closing the roof
      · Glass made of polycarbonate
      · Outlet in the base

L27

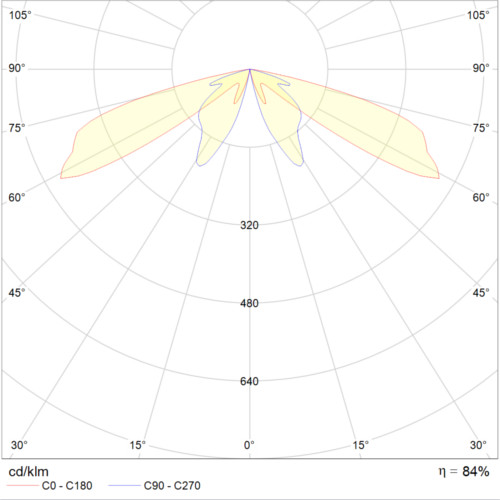

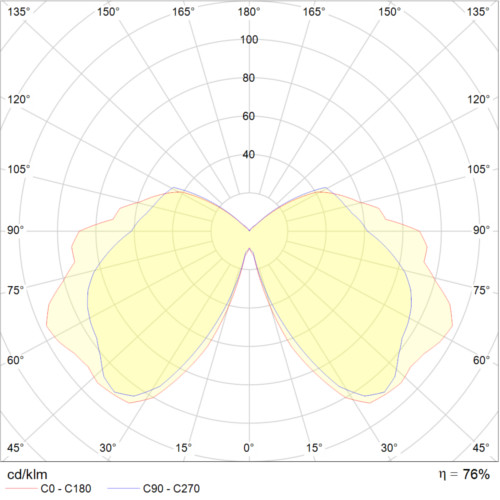

Polardiagram:

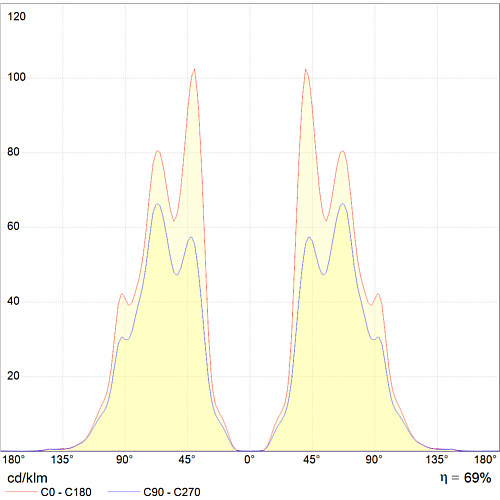

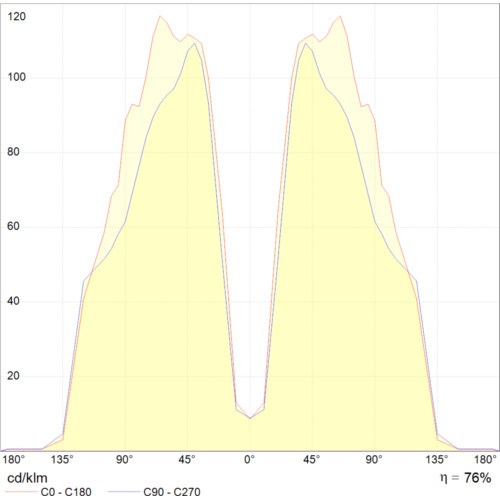

Cartesian diagram:
Light source: HSE 50 Watt

L27 HLS

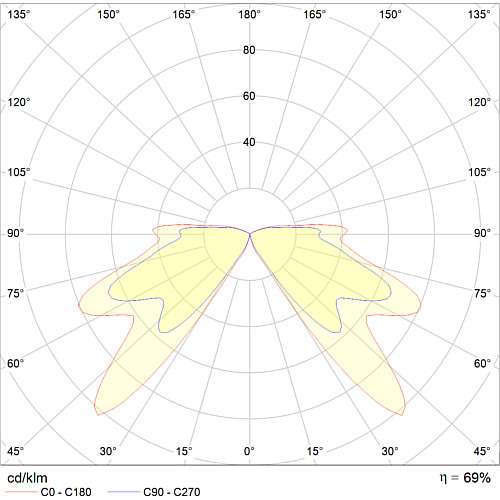

Polardiagram:

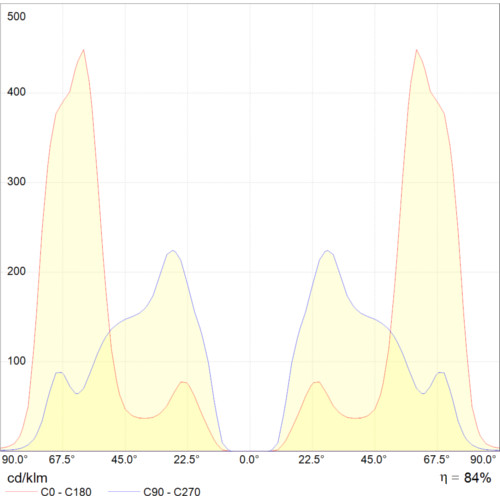

Cartesian diagram:
Light source: Osram HCI-T Powerball 35W/WDL

L27 S

Polardiagram:
Cartesian diagram:
Light source: Eye Cera Arc CMT35F/DW

L27

L27 Hochleistungsspiegel

L27 S
